Product Summary

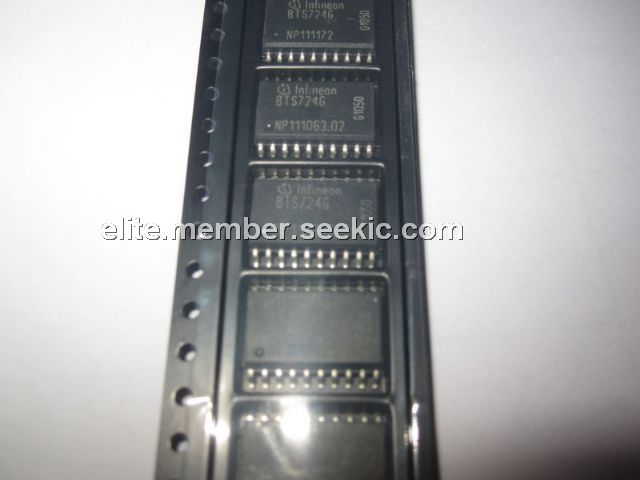

The BTS724G is a N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions.
Parametrics
BTS724G absolute maximum ratings: (1)Supply voltage (overvoltage protection): 43 V; (2)Supply voltage for full short circuit protection; Tj = -40 to 150℃: 36 V; (3)Load current (Short-circuit current): self-limited A; (4)Load dump protection VLoadDump = VA + VS; VA = 13.5 V: 60 V; (5)Operating temperature range: -40 to +150 ℃; (6)Storage temperature range: -55 to +150 ℃.
Features
BTS724G features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTS724G |
Infineon Technologies |
Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH INDUSTRY APP |
Data Sheet |
|
|
||||||||||||
