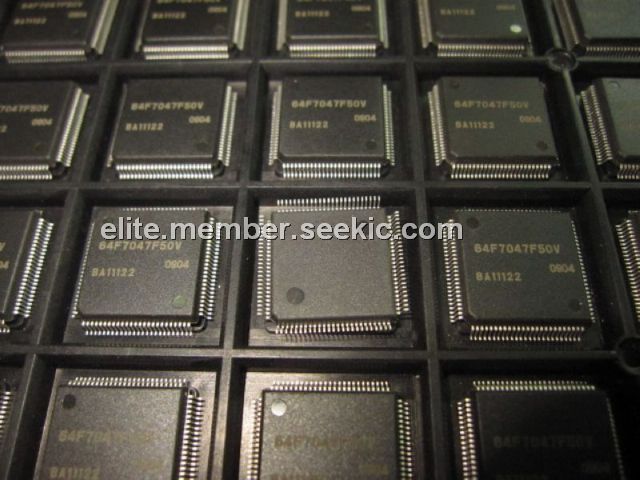

HD64F7047F50V

single-chip RISC microprocessor, QFP, –0.3 to +7.0 V, Load-store architecture, Clock pulse generator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $23.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $23.00~25.00

PartNumber:: HD64F7047F50V

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-04

From Other Seller

Part Number:HD64F7047F50V
US $23.00 - 25.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HD64F7047F50V is a single-chip RISC (Reduced Instruction Set Computer) microprocessor integrated a Renesas-original RISC CPU core with peripheral functions required for system configuration. The HD64F7047F50V CPU has a RISC-type instruction set. Most instructions can be executed in one state (one system clock cycle), which greatly improves instruction execution speed. In addition, the HD64F7047F50V 32-bit internal-bus architecture enhances data processing power. With this CPU, the HD64F7047F50V has become possible to assemble low cost, high performance/high-functioning systems, even for applications that were previously impossible with microprocessors, such as real-time control, which demands high speeds.

Parametrics

HD64F7047F50V absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +7.0 V; (2)Input voltage, Vin: –0.3 to VCC +0.3 V; (3)Analog supply voltage, AVCC: –0.3 to +7.0 V; (4)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (5)Operating temperature, Topr: –40 to +85℃; (6)Storage temperature Tstg:–55 to +125℃.

Features

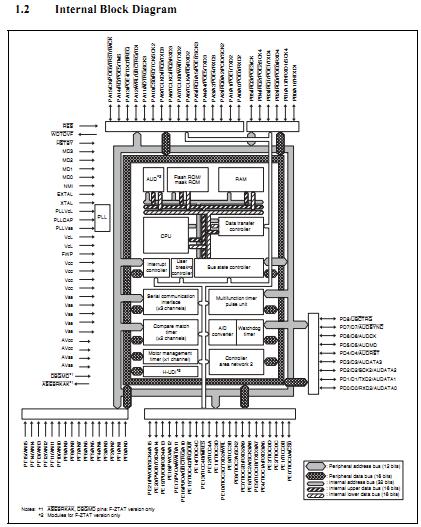

HD64F7047F50V features: (1)Instruction length: 16-bit fixed length for improved code efficiency; (2)Load-store architecture (basic operations are executed between registers); (3)Sixteen 32-bit general registers; (4)Five-stage pipeline; (5)On-chip multiplier: multiplication operations (32 bits × 32bits → 64 bits) executed in two to four cycles; (6)C language-oriented 62 basic instructions; (7)Data transfer controller (DTC); (8)Multifunction timer/pulse unit (MTU); (9)Motor management timer(MMT); (10)Compare match timer (CMT); (11)Watchdog timer (WDT); (12)Asynchronous or clocked synchronous serial communication interface(SCI); (13)10-bit A/D converter; (14)Clock pulse generator; (15)Controller area network2 (HCAN2); (16)User break controller (UBC); (17)High-performance user debug interface (H-UDI); (18)Advanced user debugger (AUD).
