Product Summary
The P80C552IBA is a Single-Chip 8-Bit Microcontroller. The P80C552IBA is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The P80C552IBA contains a non-volatile 8k × 8 read-only program memory, a volatile 256 × 8 read/write data memory, five 8-bit I/O ports, one 8-bit input port, two 16-bit timer/event counters (identical to the timers of the 80C51), an additional 16-bit timer coupled to capture and compare latches, a 15-source, two-priority-level, nested interrupt structure, an 8-input ADC, a dual DAC pulse width modulated interface, two serial interfaces (UART and I2C-bus), a watchdog timer and on-chip oscillator and timing circuits. For systems that require extra capability, the P80C552IBA can be expanded using standard TTL compatible memories and logic.
Parametrics
P80C552IBA absolute maximum ratings: (1)Storage temperature range: –65 to +150 ℃; (2)Voltage on any other pin to VSS: –0.5 to +6.5 V; (3)Input, output DC current on any single I/O pin: 5.0 mA; (4)Power dissipation: 1.0 W.
Features
P80C552IBA features: (1)80C51 central processing unit; (2)8k 8 ROM expandable externally to 64 kbytes; (3)ROM code protection; (4)An additional 16-bit timer/counter coupled to four capture registers and three compare registers; (5)Two standard 16-bit timer/counters; (6)256 8 RAM, expandable externally to 64 kbytes; (7)Capable of producing eight synchronized, timed outputs; (8)A 10-bit ADC with eight multiplexed analog inputs; (9)Two 8-bit resolution, pulse width modulation outputs; (10)Five 8-bit I/O ports plus one 8-bit input port shared with analog; (11)inputs; (12)I2C-bus serial I/O port with byte oriented master and slave functions; (13)Full-duplex UART compatible with the standard 80C51; (14)On-chip watchdog timer.

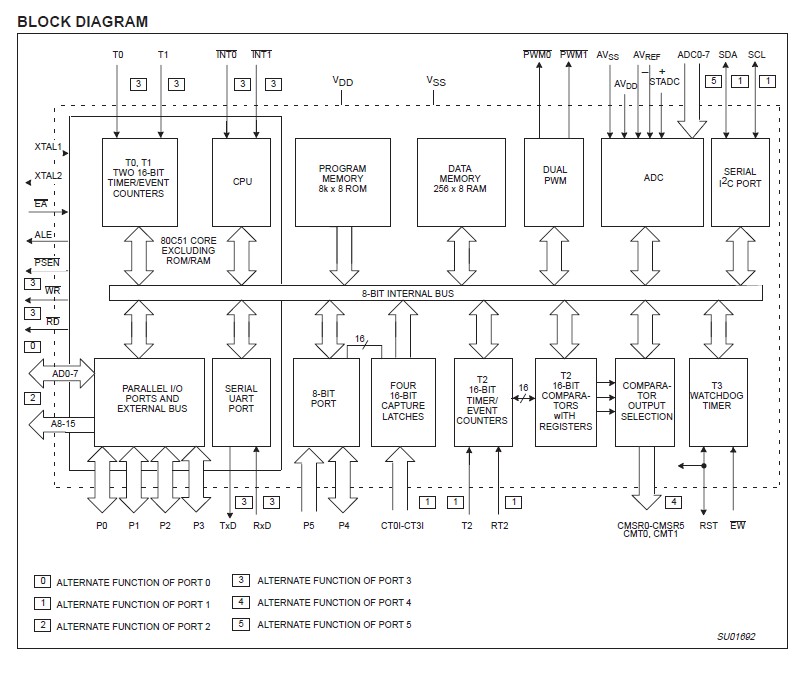

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P80C552IBA/08,512 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 80C51 256B 10BT A/D ROMLESS |
Data Sheet |
|
|
||||||||||||
 |
P80C552IBA/08,518 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 8B MCU 10B A/D PWM |
Data Sheet |
|
|
||||||||||||
