Product Summary
The HCPL-314J is an optocoupler. It consists of an Al-GaAs LED optically coupled to an integrated circuit with a power output stage. The HCPL-314J is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes the HCPL-314J ideally suited for directly driving small or medium power IGBTs. For IGBTs with higher ratings the HCPL-3150(0.5A) or HCPL-3120 (2.0A) optocouplers can be used.
Parametrics
HCPL-314J absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 100℃; (3)Average Input Current, IF(AVG): 25 mA max; (4)Reverse Input Voltage, VR: 5 V; (5)Supply Voltage, VCC-VEE: -0.5 to 35 V; (6)Output Voltage, VO(PEAK): -0.5 to VCC V; (7)Output Power Dissipation, PO: 260 mW.
Features
HCPL-314J features: (1)0.4 A Minimum Peak Output Current; (2)High Speed Response: 0.7 μs Max. Propagation Delay over Temp. Range; (3)Ultra High CMR: Min.10 kV/μs at VCM = 1.5 kV; (4)Bootstrappable Supply Current: Max. 3 mA; (5)Wide Operating Temp.Range: -40 to 100℃; (6)Wide VCC Operating Range: 10 V to 30 V over Temp. Range; (7)Available in DIP8 (Single) and SO16 (Dual) Package; (8)Safety Approvals: UL Recognized, 3750 Vrms for 1 Minute. CSA Approval. IEC/EN/DIN EN 60747-5-2 Approval VIORM=891 Vpeak.

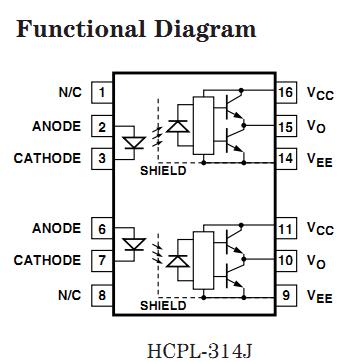

Diagrams

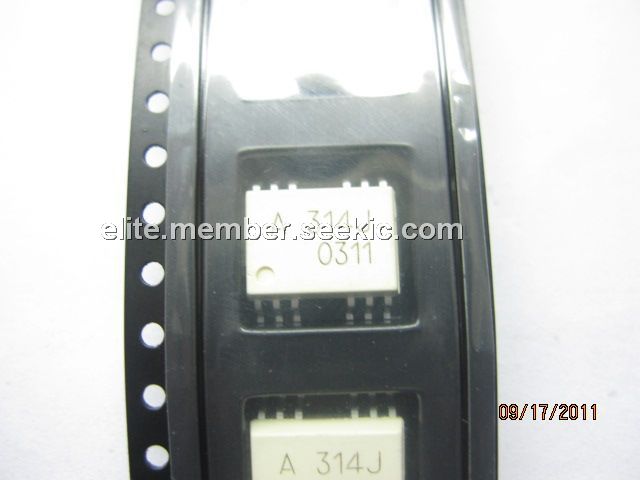

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-314J |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-314J#500 |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-314J-000E |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-314J-500E |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
