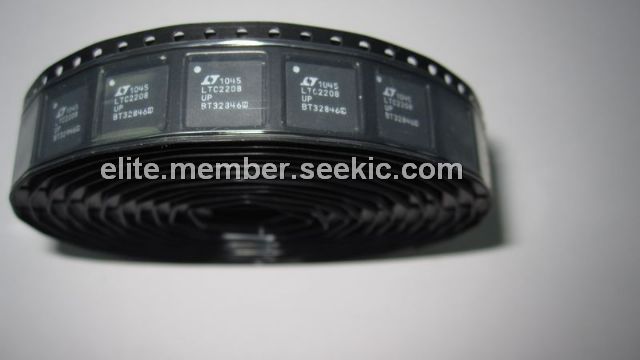

LTC2208CUP#PBF

130Msps, sampling 16-bit A/D converter, QFN, –0.3V to 4V, 2000mW, 78dBFS Noise Floor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $53.50~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $53.50~60.00

PartNumber:: LTC2208CUP#PBF

Brand:: Linear Technology - Linear | Pack: QFN | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-04

From Other Seller

Part Number:LTC2208CUP#PBF
US $53.50 - 60.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC2208CUP#PBF is a 130Msps, sampling 16-bit A/D converter designed for digitizing high frequency, wide dynamic range signals with input frequencies up to 700MHz. The input range of the ADC can be optimized with the PGA front end. The applications of the LTC2208CUP#PBF include Telecommunications, Receivers, Cellular Base Stations, Spectrum Analysis, Imaging Systems and ATE.

Parametrics

LTC2208CUP#PBF absolute maximum ratings: (1)Supply Voltage (VDD): –0.3V to 4V; (2)Digital Output Ground Voltage (OGND): –0.3V to 1V; (3)Analog Input Voltage: –0.3V to (VDD + 0.3V) ; (4)Digital Input Voltage: –0.3V to (VDD + 0.3V); (5)Digital Output Voltage:–0.3V to (OVDD + 0.3V); (6)Power Dissipation: 2000mW; (7)Operating Temperature Range: 0 to 70℃; (8)Storage Temperature Range:–65 to 150℃; (9)Digital Output Supply Voltage (OVDD): –0.3V to 4V.

Features

LTC2208CUP#PBF features: (1)Sample Rate: 130Msps; (2)78dBFS Noise Floor; (3)100dB SFDR; (4)SFDR >83dB at 250MHz (1.5VP-P Input Range); (5)PGA Front End (2.25VP-P or 1.5VP-P Input Range); (6)700MHz Full Power Bandwidth S/H; (7)Optional Internal Dither; (8)Optional Data Output Randomizer; (9)LVDS or CMOS Outputs; (10)Single 3.3V Supply; (11)Power Dissipation: 1.25W; (12)Clock Duty Cycle Stabilizer; (13)Pin Compatible 14-Bit Version 130Msps; (14)64-Pin (9mm × 9mm) QFN Package.
