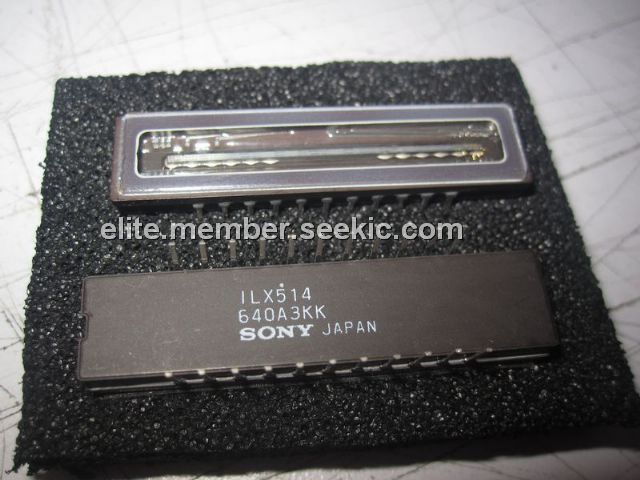

Product Summary
The ILX514 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers. This sensor ILX514 reads A4-size documents at a density of 400 DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use. In addition, reset pulse can be switched between internal generation and external input.
Parametrics
ILX514 absolute maximum ratings: (1)Supply voltage, VDD1: 11V; VDD2: 6V; (2)Operating temperature: –10 to +60℃; (3)Storage temperature: –30 to +80℃.
Features
ILX514 features: (1)Number of effective pixels: 3918 pixels; (2)Pixel size: 7μm × 7μm (7μm pitch); (3)Built-in timing generator and clock-drivers; (4)Ultra low lag/ultra high sensitivity/low dark output; (5)Single output method; (6)Maximum clock frequency: 5MHz.

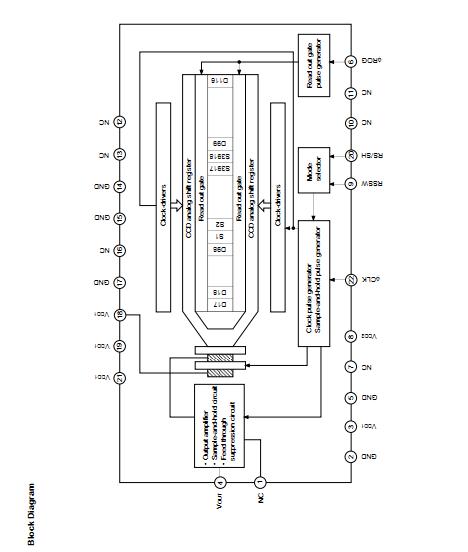

Diagrams
