Product Summary

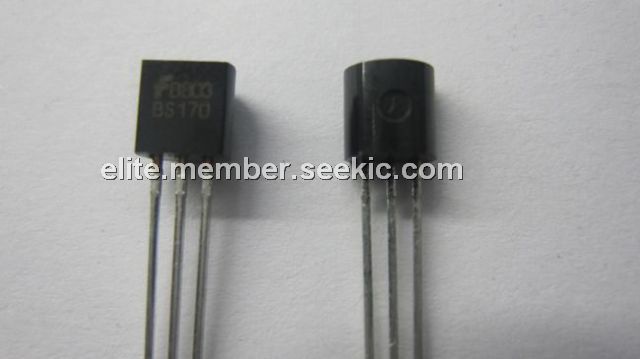

The BS170 is a N-Channel enhancement mode field effect transistor. It is produced using Fairchild’s proprietary, high cell density, DMOS technology. The BS170 has been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance. The BS170 can be used in most applications requiring up to 500mA DC. The BS170 is particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.

Parametrics

BS170 absolute maximum ratings: (1)VDSS, Drain-Source Voltage: 60 V; (2)VDGR, Drain-Gate Voltage (RGS ≤ 1MΩ): 60V; (3)VGSS, Gate-Source Voltage: ± 20 V; (4)ID, Drain Current, Continuou: 500mA; Pulsed: 1200mA; (5)TJ, TSTG, Operating and Storage Temperature Range: - 55 to 150℃; (6)TL, Maximum Lead Temperature for Soldering Purposes, 1/16 inch from Case for 10 Seconds: 300℃.

Features

BS170 features: (1)High density cell design for low RDS(ON); (2)Voltage controlled small signal switch; (3)Rugged and reliable; (4)High saturation current capability.

Diagrams

BS170 circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BS170
BS170
Fairchild Semiconductor
MOSFET N-Channel MOSFET
Data Sheet
0-1: $0.14
1-25: $0.13
25-100: $0.11
100-250: $0.08
BS170_D26Z
BS170_D26Z
Fairchild Semiconductor
MOSFET N-Ch Enhancement Mode Field Effect
Data Sheet
0-1: $0.07
1-25: $0.06
25-100: $0.05
100-250: $0.04
BS170_D27Z
BS170_D27Z
Fairchild Semiconductor
MOSFET N-Ch Enhancement Mode Field Effect
Data Sheet
0-1: $0.26
1-25: $0.19
25-100: $0.11
100-250: $0.08
BS170_D74Z
BS170_D74Z
Fairchild Semiconductor
MOSFET NCh Enhancement Mode
Data Sheet
0-1: $0.27
1-25: $0.20
25-100: $0.12
100-250: $0.08
BS170_D75Z
BS170_D75Z
Fairchild Semiconductor
MOSFET N-Ch Enhancement Mode Field Effect
Data Sheet
0-1: $0.21
1-25: $0.16
25-100: $0.12
100-250: $0.09
BS170_J35Z
BS170_J35Z
Fairchild Semiconductor
MOSFET 60V N-Ch Signal DMOS
Data Sheet
Negotiable
BS170_L34Z
BS170_L34Z
Fairchild Semiconductor
MOSFET NCh Enhancement Mode
Data Sheet
Negotiable
BS170_Q
BS170_Q
Fairchild Semiconductor
MOSFET N-Channel MOSFET
Data Sheet
Negotiable
