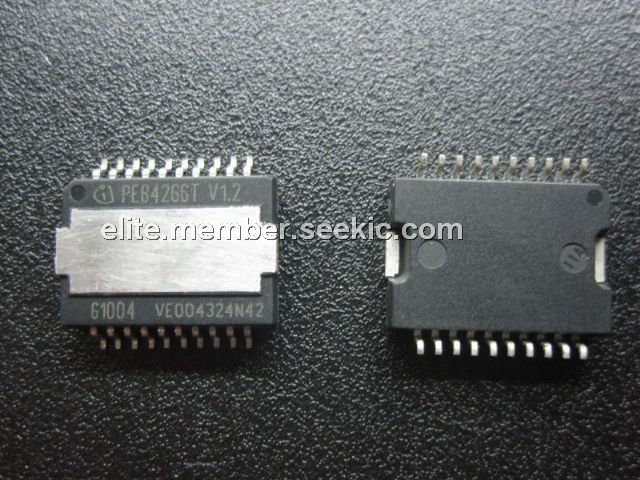

PEB4266T-V1.2

SOP20, enhanced solution, 16 kHz, 50 VRMS, 200 Ω, parallel microcontroller, host processor interface, 0.25 dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.40~1.50

PartNumber:: PEB4266T-V1.2

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-04

From Other Seller

Part Number:PEB4266T-V1.2
US $1.40 - 1.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PEB4266T-V1.2 is an enhanced solution for next generation analog telephony. The PEB4266T-V1.2 codec/SLIC chip set provides a 4 or 8 channel analog termination, optimized for Access Network and Customer Premises applications. The software programmable VINETIC of the PEB4266T-V1.2 builds on the success of the well-known DuSLIC chip set. VINETIC adds a comprehensive set of new system features especially designed for packet based voice transmission, as used in VoDSL, VoIP and VoCable.

Parametrics

PEB4266T-V1.2 absolute maximum ratings: (1)Gain accuracy Transmit, GX when 0 dBm0, 1014 Hz: –0.25 – +0.25 dB; (2)Gain accuracy Receive, GR when 0 dBm0, 1014 Hz: –0.25 to +0.25 dB; (3)Gain variation with temperature –40 to +85℃: ±0.1 dB; (4)Longitudinal current capability AC, Ill per active line: 30mArms; (5)Overload level VTR 300 - 4000 Hz: 2.3Vrms.

Features

PEB4266T-V1.2 features: (1)Uses Infineons well-known DuSLIC SLICs; (2)AC and DC characteristic software programmable; (3)Flexible Interfaces: PCM, IOM; serial, parallel microcontroller/ host processor interface; (4)Enhanced Power Management Internal programmable balanced ringing up to 100 VRMS and 50 VRMS unbalanced ringing; (5)Full support of external unbalanced ringing; (6)Metering pulse up to 2.5 VRMS at 200 Ω (12/16 kHz).
