Product Summary
The CY7B923-JXC is a HOTLink transmitter.
Parametrics
CY7B923-JXC absolute maximum ratings: (1)Storage temperature:–65 to +150℃; (2)Ambient temperature with power applied:–55 to +125℃; (3)Supply voltage to ground potential: –0.5 V to +7.0 V; (4)DC input voltage: –0.5 V to +7.0 V; (5)Output current into TTL outputs (LOW): 30 mA; (6)Output current into PECL outputs (HIGH): –50 mA; (7)Static discharge voltage: > 4001 V; (8)Latch up current: > 200 mA.
Features
CY7B923-JXC features: (1)Fibre Channel-compliant; (2)IBM ESCON-compliant; (3)DVB-ASI-compliant; (4)ATM-compliant; (5)8B/10B-coded or 10-bit unencoded; (6)Standard HOTLink: 160 to 330 Mbps; (7)High-speed HOTLink: 160 to 400 Mbps for high-speed applications; (8)Transistor-transistor logic (TTL)-synchronous I/O; (9)No external phase locked-loop (PLL) components; (10)Triple positive emitter coupled logic (PECL) 100 K serial outputs; (11)Dual PECL 100 K serial inputs; (12)Low-power: 350 mW (Tx), 650 mW (Rx); (13)Compatible with fiber-optic modules, coaxial cable, and twisted pair media; (14)Built-in self-test (BIST); (15)Single +5-V supply; (16)28-pin small outline integrated circuit (SOIC)/plastic leaded chip carrier (PLCC); (17)Pb-free packages available; (18)0.8-μ bipolar complementary metal oxide semiconductor (BiCMOS).

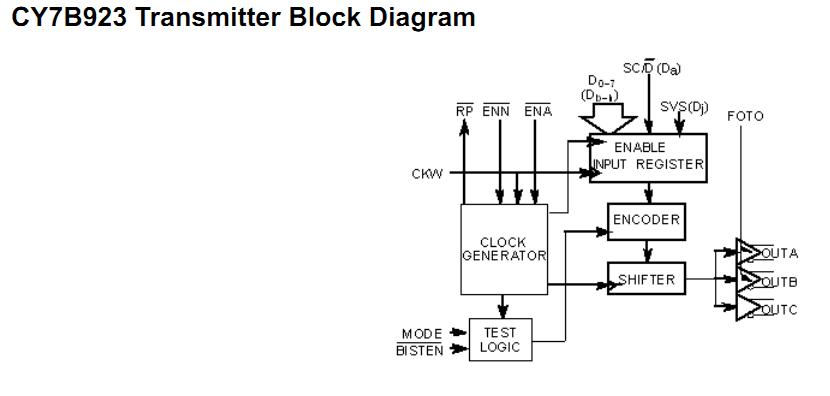

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7B923-JXC |
Cypress Semiconductor |
Telecom Line Management ICs HOTLink Transmitter COM |
Data Sheet |
|
|
||||||||||||
|
CY7B923-JXCT |
Cypress Semiconductor |
Telecom Line Management ICs HOTLink Transmitter COM |
Data Sheet |
|
|
||||||||||||
