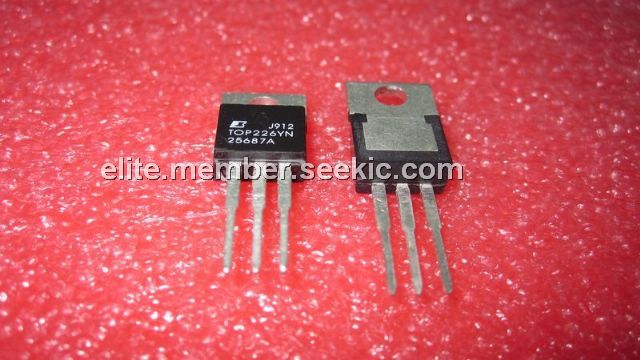

TOP226YN

three-terminal Off-line PWM Switch, TO, -0.3 to 700 V, 100 mA, Lowest cost, Latching Thermal shutdown

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.20

PartNumber:: TOP226YN

Brand:: Power Integrations, Inc. - Power | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ellen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-01

From Other Seller

Part Number:TOP226YN
US $0.90 - 1.20
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

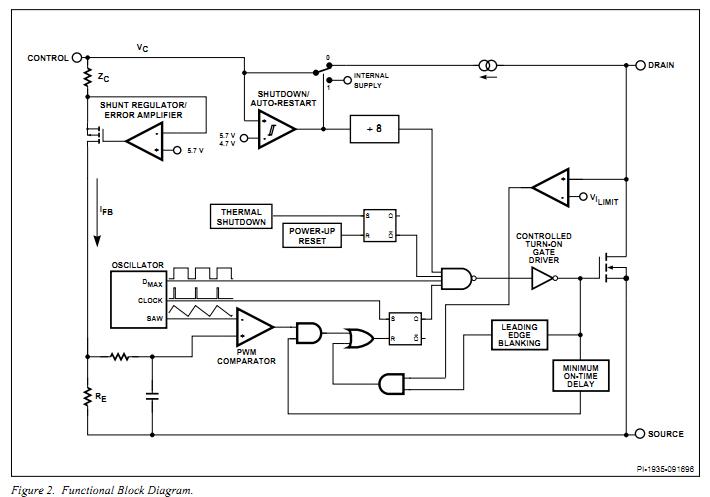

The TOP226YN is a three-terminal Off-line PWM Switch. The TOP226YN is more cost effective and provides several enhancements over the first generation TOPSwitch family. The TOP226YN extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input. This brings TOPSwitch technology advantages to many new applications, i.e. TV, Monitor, Audio amplifiers, etc. Many significant circuit enhancements that reduce the sensitivity to board layout and line transients now make the design even easier.

Parametrics

TOP226YN absolute maximum ratings: (1)DRAIN Voltage: -0.3 to 700 V; (2)DRAIN Current Increase (△ID) in 100 ns except during blanking time: 0.1 x ILIMIT(MAX); (3)CONTROL Voltage: - 0.3 V to 9 V; (4)CONTROL Current: 100 mA; (5)Storage Temperature: -65 to 125℃; (6)Operating Junction Temperature: -40 to 150℃; (7)Lead Temperature: 260℃.

Features

TOP226YN features: (1)Lowest cost, lowest component count switcher solution; (2)Cost competitive with linears above 5W; (3)Very low AC/DC losses – up to 90% efficiency; (4)Built-in Auto-restart and Current limiting; (5)Latching Thermal shutdown for system level protection; (6)Implements Flyback, Forward, Boost or Buck topology; (7)Works with primary or opto feedback; (8)Stable in discontinuous or continuous conduction mode; (9)Source connected tab for low EMI; (10)Circuit simplicity and Design Tools reduce time to market.
