Product Summary

The LM310N is a voltage follower. The LM310N monolithic operational amplifier internally connected as unity-gain non-inverting amplifiers. It uses super gain transistors in the input stage to get low bias current without sacrificing speed. Directly interchangeable with 101, 741 and 709 in voltage follower applications, these devices have internal frequency compensation and provision for offset balancing. The LM310N is useful in fast sample and hold circuits, active filters, or as general-purpose buffers. Further, the frequency response of the LM310N is sufficiently better than standard IC amplifiers that the followers can be included in the feedback loop without introducing instability.

Parametrics

LM310N absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 500 mW; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration: Indefinite; (5)Operating Temperature Range: 0℃ to +70℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec.): 260℃; (8)Soldering Information. Dual-In-Line Package. Soldering (10 sec.): 260℃.

Features

LM310N features: (1)Input current 10 nA max over temperature; (2)Small signal bandwidth 20 MHz; (3)Slew rate 30 V/ms; (4)Supply voltage range g5V to g18V.

Diagrams

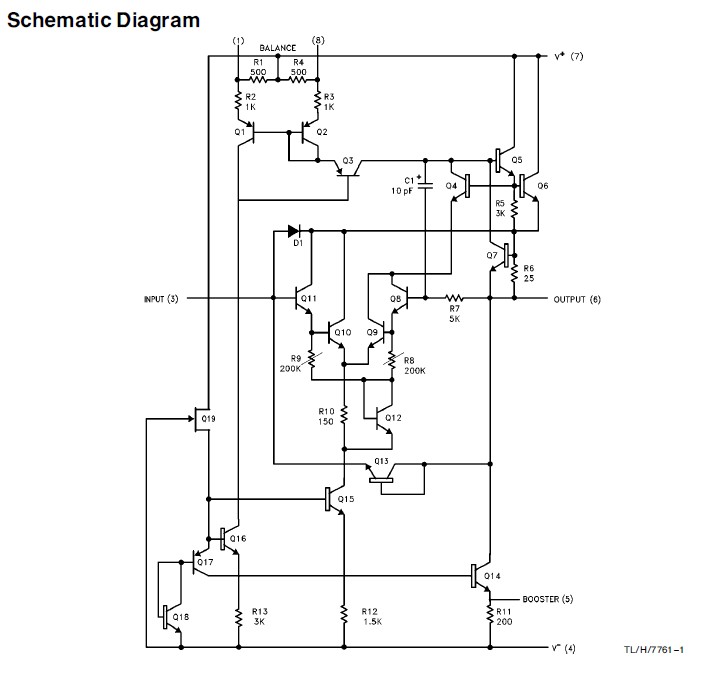

LM310N Schematic Diagram
