Product Summary

The VN10KLS is a N-Channel 60-V (D-S) MOSFET with Zener Gate. The applications of the device include Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc, Battery Operated Systems, Solid-State Relays and Inductive Load Drivers.

Parametrics

VN10KLS absolute maximum ratings: (1)Drain-Source Voltage, VDS: 60V; (2)Gate-Source Voltage VGS: 15/–0.3V; (3)Continuous Drain Current (TJ = 150℃), ID: 0.31A at TA=25℃; 0.20A at TA=100℃; (4)Pulsed Drain Current, IDM: 1.0A; (5)Power Dissipation, PD: 0.9W at TA=25℃; 0.4W at TA=100℃; (6)Thermal Resistance, Junction-to-Ambient, RthJA: 139℃/W; (7)Operating Junction and Storage Temperature Range, TJ, Tstg: –55 to 150℃.

Features

VN10KLS features: (1)Zener Diode Input Protected; (2)Low On-Resistance: 3Ω; (3)Ultralow Threshold: 1.2 V; (4)Low Input Capacitance: 38 pF; (5)Low Input and Output Leakage.

Diagrams

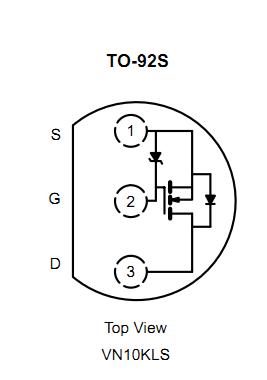

VN10KLS circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VN10KLS
VN10KLS
Vishay/Siliconix
MOSFET 60V 0.31A 0.9W
Data Sheet
Negotiable
